Thank you ZIGGPRO for geared motor donation!

Home / Uncategorized / Thank you ZIGGPRO for geared motor donation!

Manubloc 3000 is geared motor with parallel gears used to adapt the speed of the electric motor to that of the driven machine. Their size is therefore determined by the motor power (P) expressed in kilowatts (kW) and the output rotation speed of the gearbox (nS) in revolutions per minute (min-1). Our generator has rated power 250 W with rated speed of 1425 min-1. The characteristic parameter of speed reducers is the rated output torque (MnS) expressed in Newton-metres (Nm):

MnS = P × 9550  / nS × efficiency

Rated output torque up to 24.07 Nm.

Reduction ratio: 15.7, two reduction stages.

Output speed: 90.74 min-1

High efficiency: 95% to 97%.

Reversible. Quiet operation.

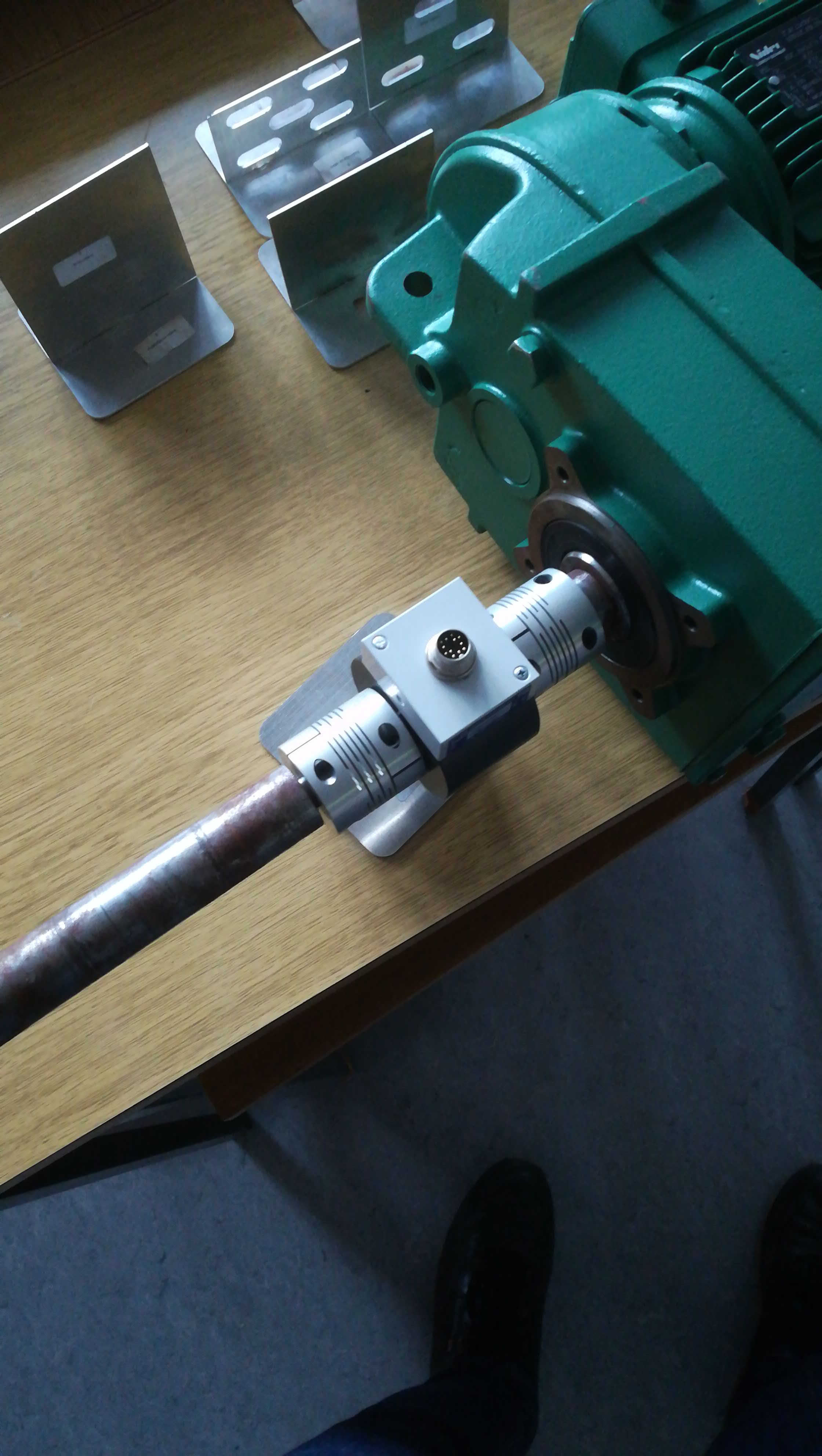

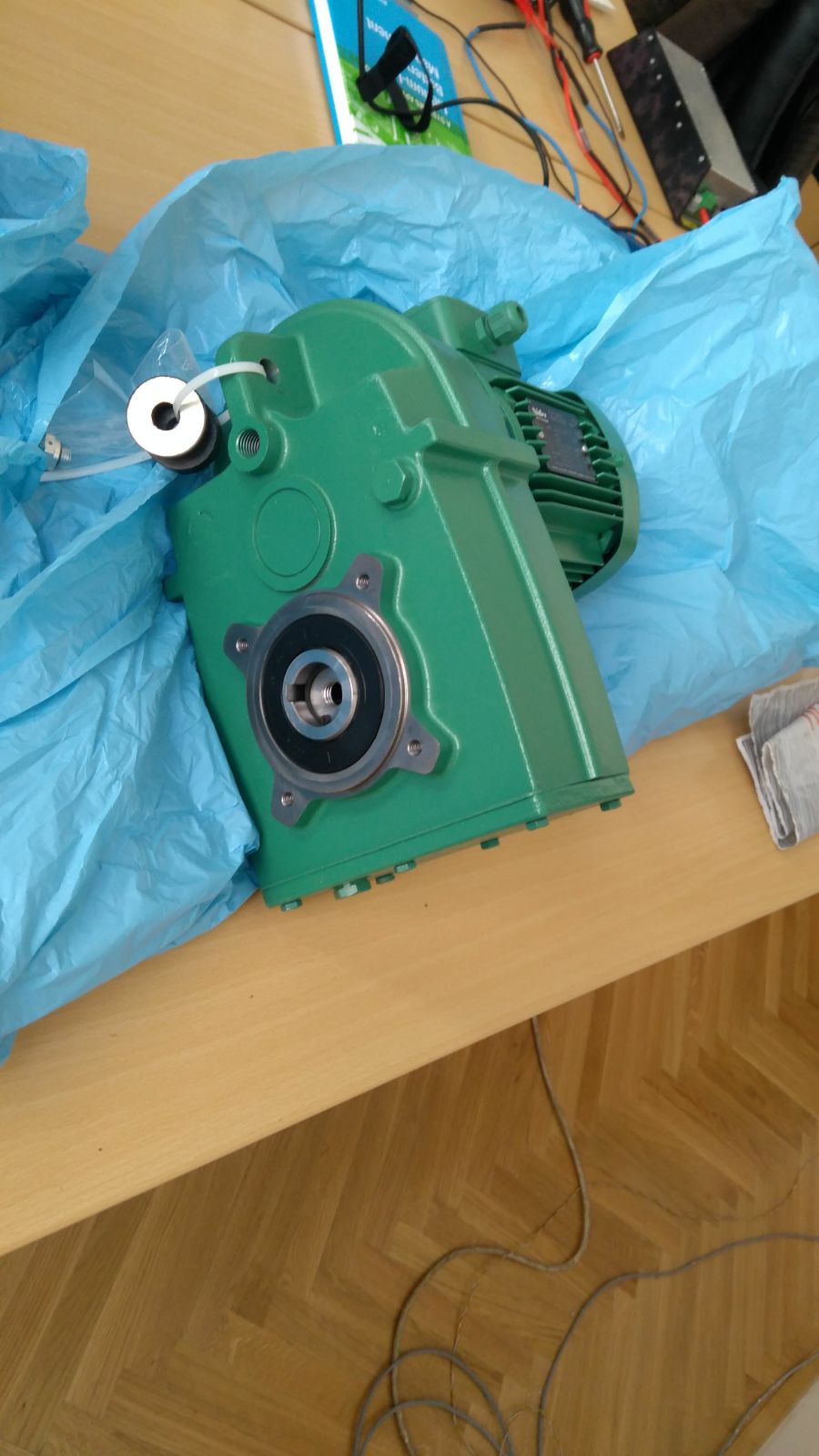

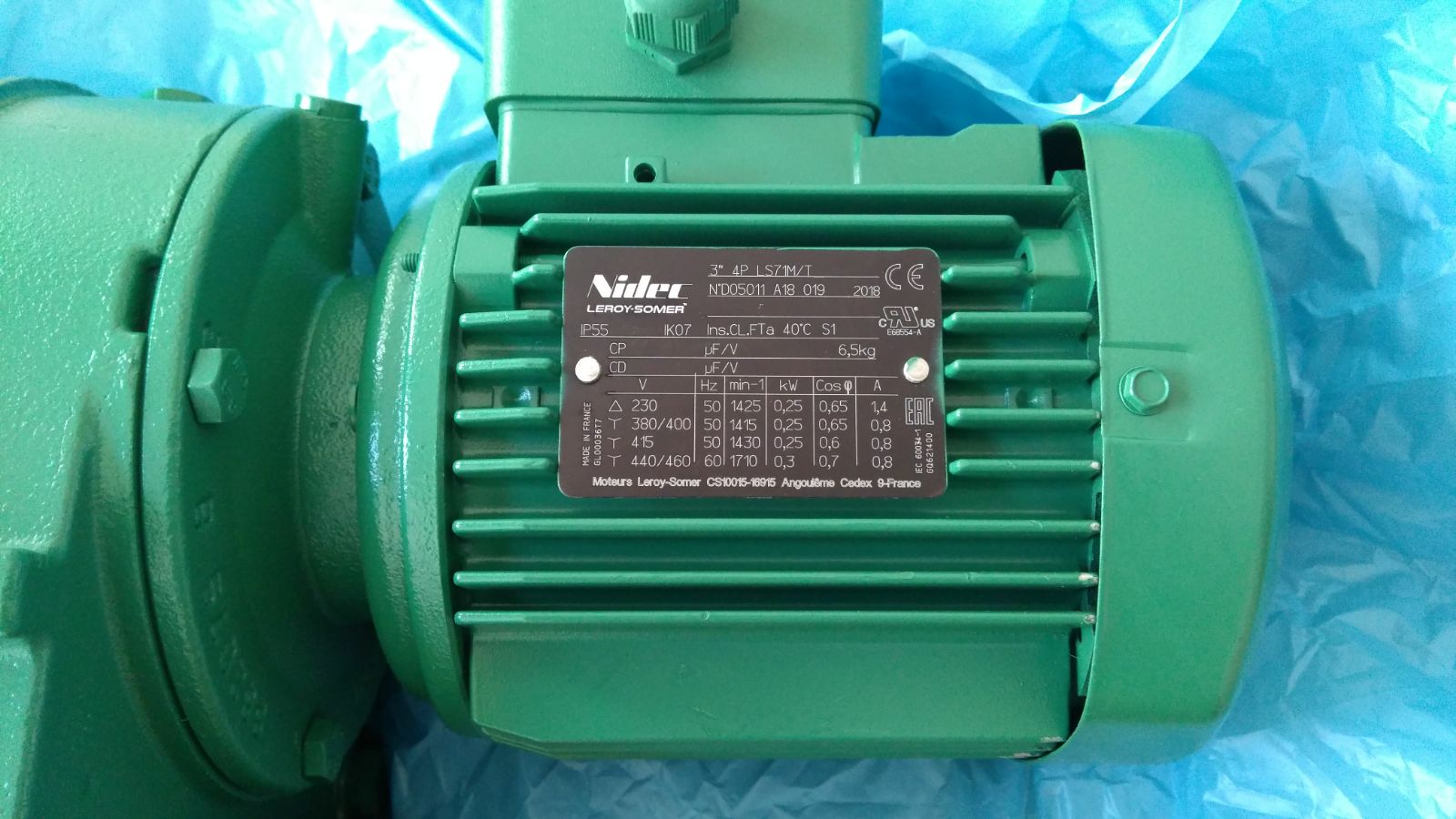

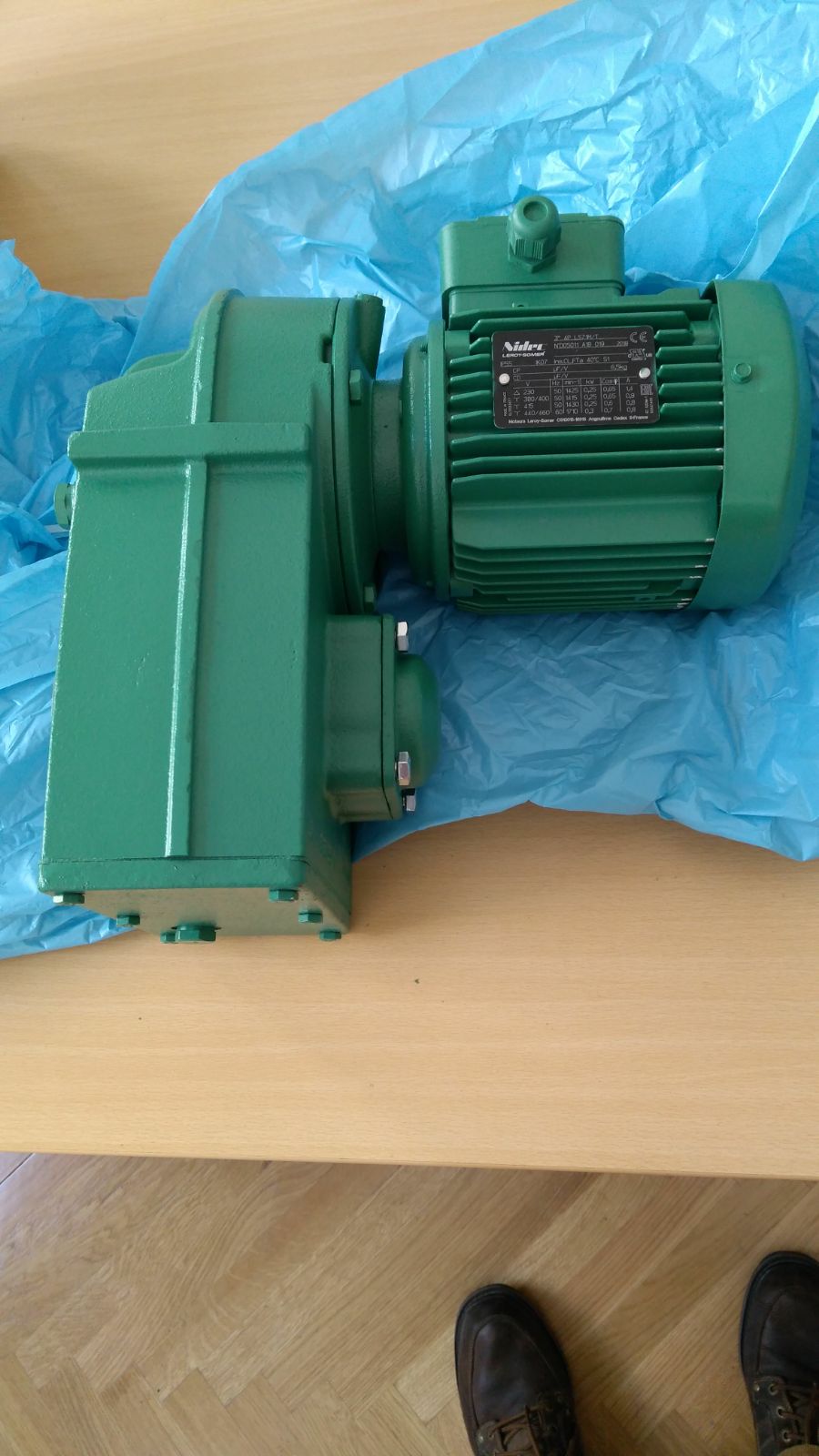

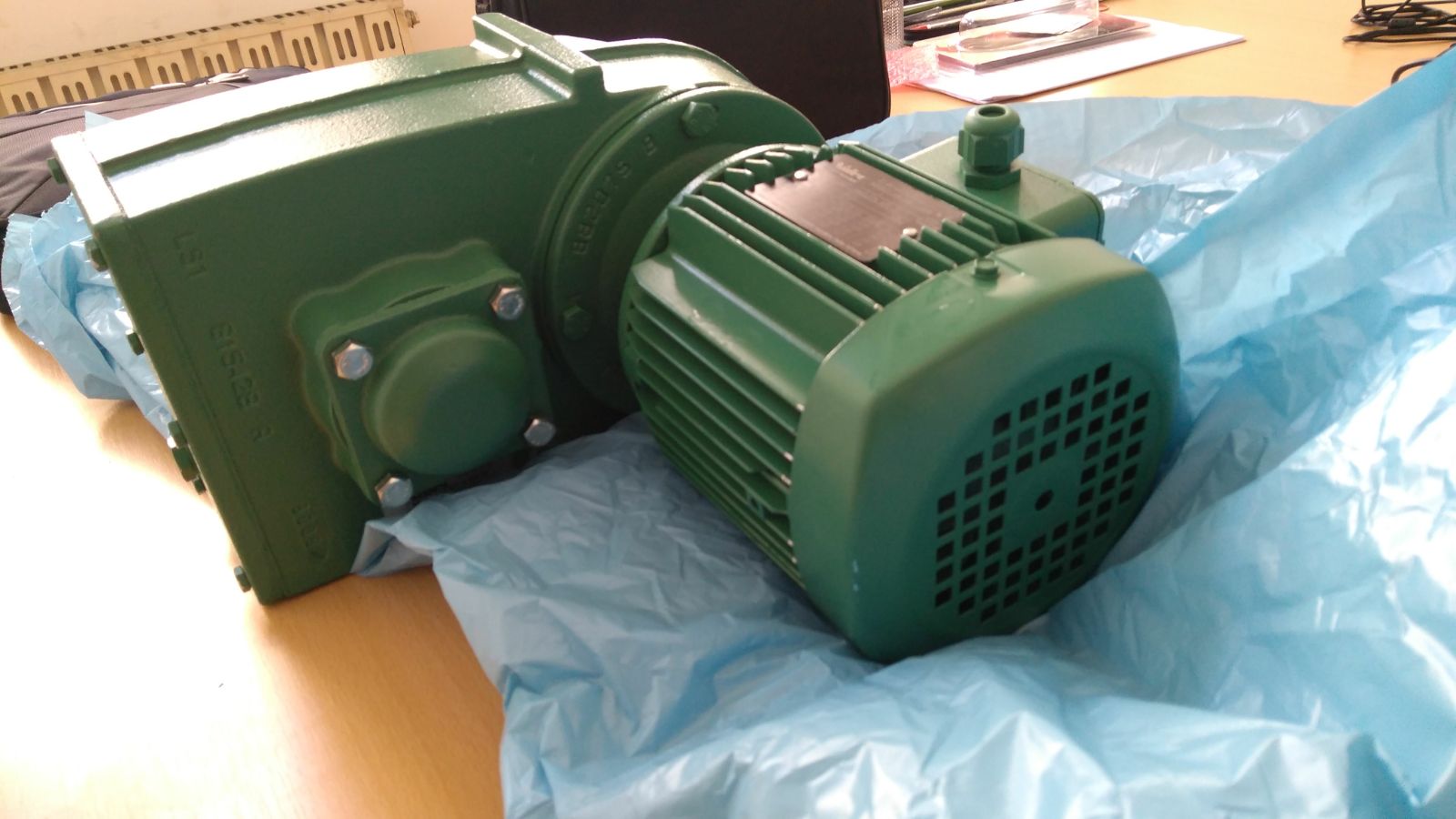

Photos are in photo gallery, and more about ZIGGPRO d.o.o. you can read on their web pages. Thank you very much!! 🙂
